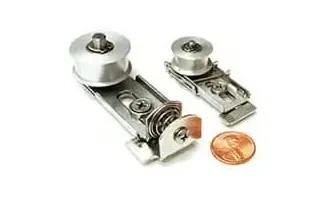

Dynamic Slot Timing Belt Tensioners Size 4

Size 4

Dynamic Slot

Active filters:

There are 15 products.

Part Number No. of Grooves Pulley Pitch Pulley O.D. Pulley Material Max. Belt Width Pulley Height Bearing Type Mounting Screw Spring Direction Max. Spring Force
16 XL (1/5") .999" ALUMINUM 3/8" (9mm) .23" BALL 10-32 x 1/2 PUSH 5 LBS.
17 5mm HTD 1.020" ALUMINUM 3/8" (9mm) 5.8mm BALL 10-32 x 1/2 PUSH 5 LBS.
28 3mm HTD 1.023" ALUMINUM 3/8" (9mm) 5.8mm BALL 10-32 x 1/2 PUSH 5 LBS.
40 MXL (.080") .999" ALUMINUM 3/8" (9mm) .23" BALL 10-32 x 1/2 PUSH 5 LBS.
28 3mm GT 1.023" ALUMINUM 3/8" (9mm) 5.8mm BALL 10-32 x 1/2 PUSH 5 LBS.
40 2mm GT .983" ALUMINUM 3/8" (9mm) 5.8mm BALL 10-32 x 1/2 PUSH 5 LBS.
N/A FLAT 1" ALUMINUM 3/8" (9mm) .23" BALL 10-32 x 1/2 PUSH 5 LBS.
N/A FLAT 1" PLASTIC 3/8" (9mm) .23" N/A 10-32 x 1/2 PUSH 5 LBS.
N/A FLAT 1" ALUMINUM 3/8" (9mm) .28" SLEEVE 10-32 x 1/2 PUSH 5 LBS.
40 2mm GT .983" ALUMINUM 3/8" (9mm) 7.1mm SLEEVE 10-32 x 1/2 PUSH 5 LBS.
28 3mm GT 1.023" ALUMINUM 3/8" (9mm) 7.1mm SLEEVE 10-32 x 1/2 PUSH 5 LBS.
40 MXL (.080") .999" ALUMINUM 3/8" (9mm) .28" SLEEVE 10-32 x 1/2 PUSH 5 LBS.
28 3mm HTD 1.023" ALUMINUM 3/8" (9mm) 7.1mm SLEEVE 10-32 x 1/2 PUSH 5 LBS.
17 5mm HTD 1.020" ALUMINUM 3/8" (9mm) 7.1mm SLEEVE 10-32 x 1/2 PUSH 5 LBS.
16 XL (1/5") .999" ALUMINUM 3/8" (9mm) .28" SLEEVE 10-32 x 1/2 PUSH 5 LBS.
