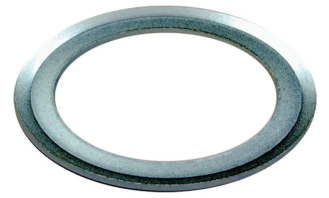

5mm GT2 Inch Pitch
Timing Pulley Flanges

5mm GT2 Pitch (Inch) Timing Pulley Flanges - Full Product List

There are 19 products.

Part Number	Material	Pitch	No. of Grooves	Inside Dia.	Outside Dia.	Stock Thickness	Overall Formed Thickness
12-5GT-F9A	Aluminum	5mm GT2	12	0.503	0.875	0.04	0.065
13-5GT-F9A	Aluminum	5mm GT2	13	0.562	0.938	0.04	0.065
14-5GT-F9A	Aluminum	5mm GT2	14	0.562	1	0.04	0.065
15-5GT-F9A	Aluminum	5mm GT2	15	0.625	1.063	0.04	0.065
16-5GT-F9A	Aluminum	5mm GT2	16	0.684	1.094	0.04	0.065
17-5GT-F9A	Aluminum	5mm GT2	17	0.748	1.188	0.04	0.065
18-5GT-F9A	Aluminum	5mm GT2	18	0.81	1.25	0.04	0.065
19-5GT-F9A	Aluminum	5mm GT2	19	0.887	1.313	0.04	0.065
20-5GT-F9A	Aluminum	5mm GT2	20	0.936	1.375	0.04	0.065
21-5GT-F9A	Aluminum	5mm GT2	21	1	1.438	0.04	0.065
22-5GT-F9A	Aluminum	5mm GT2	22	1.062	1.5	0.04	0.065
23-5GT-F9A	Aluminum	5mm GT2	23	1.125	1.563	0.04	0.065
24-5GT-F9A	Aluminum	5mm GT2	24	1.16	1.625	0.04	0.065
25-5GT-F9A	Aluminum	5mm GT2	25	1.222	1.688	0.04	0.065
26-5GT-F9A	Aluminum	5mm GT2	26	1.222	1.75	0.04	0.065
28-5GT-F9A	Aluminum	5mm GT2	28	1.347	1.875	0.04	0.065
30-5GT-F9A	Aluminum	5mm GT2	30	1.425	2	0.04	0.065
32-5GT-F9A	Aluminum	5mm GT2	32	1.55	2.125	0.04	0.065
34-5GT-F9A	Aluminum	5mm GT2	34	1.675	2.25	0.04	0.065
