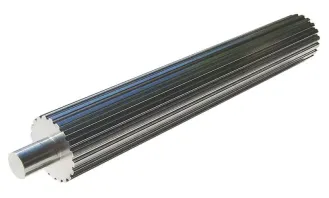

.080" MXL Inch Pitch
Timing Pulley Stock

.080" MXL Pitch (Inch) Timing Pulley Stock - Full Product List

There are 61 products.

Part Number	Material	Pitch	No. of Grooves	Pitch Dia.	Outside Dia.	Shank Dia.	Usable Length
80MXL-P-8A	Aluminum	.080 MXL	80	2.037	2.017	0.7500	8"
82MXL-P-8A	Aluminum	.080 MXL	82	2.088	2.068	0.7500	8"
84MXL-P-8A	Aluminum	.080 MXL	84	2.139	2.119	0.7500	8"
88MXL-P-8A	Aluminum	.080 MXL	88	2.241	2.221	0.7500	8"
90MXL-P-8A	Aluminum	.080 MXL	90	2.292	2.272	0.7500	8"
96MXL-P-8A	Aluminum	.080 MXL	96	2.445	2.425	0.7500	8"
98MXL-P-8A	Aluminum	.080 MXL	98	2.496	2.476	0.7500	8"
100MXL-P-8A	Aluminum	.080 MXL	100	2.546	2.526	0.7500	8"
102MXL-P-8A	Aluminum	.080 MXL	102	2.597	2.577	0.7500	8"
108MXL-P-8A	Aluminum	.080 MXL	108	2.750	2.730	0.7500	8"
110MXL-P-8A	Aluminum	.080 MXL	110	2.801	2.781	0.7500	8"
120MXL-P-8A	Aluminum	.080 MXL	120	3.056	3.036	0.7500	8"
130MXL-P-8A	Aluminum	.080 MXL	130	3.310	3.290	0.7500	8"
140MXL-P-8A	Aluminum	.080 MXL	140	3.565	3.545	0.7500	8"
150MXL-P-8A	Aluminum	.080 MXL	150	3.820	3.800	0.7500	8"
40MXL-P-7A	Aluminum	.080 MXL	40	1.019	0.999	0.5000	7"
42MXL-P-7A	Aluminum	.080 MXL	42	1.070	1.050	0.5000	7"
44MXL-P-7A	Aluminum	.080 MXL	44	1.120	1.100	0.5000	7"
45MXL-P-7A	Aluminum	.080 MXL	45	1.146	1.126	0.5000	7"
48MXL-P-7A	Aluminum	.080 MXL	48	1.222	1.202	0.5000	7"
50MXL-P-7A	Aluminum	.080 MXL	50	1.273	1.253	0.5000	7"
51MXL-P-7A	Aluminum	.080 MXL	51	1.299	1.279	0.5000	7"
52MXL-P-7A	Aluminum	.080 MXL	52	1.324	1.304	0.5000	7"
54MXL-P-7A	Aluminum	.080 MXL	54	1.375	1.355	0.5000	7"
55MXL-P-7A	Aluminum	.080 MXL	55	1.401	1.381	0.5000	7"
56MXL-P-7A	Aluminum	.080 MXL	56	1.426	1.406	0.5000	7"
57MXL-P-7A	Aluminum	.080 MXL	57	1.451	1.431	0.5000	7"
60MXL-P-8A	Aluminum	.080 MXL	60	1.528	1.508	0.5000	8"
64MXL-P-8A	Aluminum	.080 MXL	64	1.630	1.610	0.5000	8"
65MXL-P-8A	Aluminum	.080 MXL	65	1.655	1.635	0.5000	8"
66MXL-P-8A	Aluminum	.080 MXL	66	1.681	1.661	0.5000	8"
70MXL-P-8A	Aluminum	.080 MXL	70	1.783	1.763	0.5000	8"
72MXL-P-8A	Aluminum	.080 MXL	72	1.833	1.813	0.5000	8"
75MXL-P-8A	Aluminum	.080 MXL	75	1.910	1.890	0.5000	8"
18MXL-P-3A	Aluminum	.080 MXL	18	0.458	0.438	0.5000	3"
19MXL-P-3A	Aluminum	.080 MXL	19	0.484	0.464	0.5000	3"
24MXL-P-5A	Aluminum	.080 MXL	24	0.611	0.591	0.5000	5"
25MXL-P-5A	Aluminum	.080 MXL	25	0.637	0.617	0.5000	5"
26MXL-P-5A	Aluminum	.080 MXL	26	0.662	0.642	0.5000	5"
27MXL-P-5A	Aluminum	.080 MXL	27	0.687	0.667	0.5000	5"
28MXL-P-5A	Aluminum	.080 MXL	28	0.713	0.693	0.5000	5"
29MXL-P-5A	Aluminum	.080 MXL	29	0.738	0.718	0.5000	5"
30MXL-P-6A	Aluminum	.080 MXL	30	0.764	0.744	0.5000	6"
31MXL-P-6A	Aluminum	.080 MXL	31	0.789	0.769	0.5000	6"
32MXL-P-6A	Aluminum	.080 MXL	32	0.815	0.795	0.5000	6"
33MXL-P-6A	Aluminum	.080 MXL	33	0.840	0.820	0.5000	6"
34MXL-P-6A	Aluminum	.080 MXL	34	0.866	0.846	0.5000	6"
35MXL-P-6A	Aluminum	.080 MXL	35	0.891	0.871	0.5000	6"
36MXL-P-6A	Aluminum	.080 MXL	36	0.917	0.897	0.5000	6"
37MXL-P-6A	Aluminum	.080 MXL	37	0.942	0.922	0.5000	6"
38MXL-P-6A	Aluminum	.080 MXL	38	0.968	0.948	0.5000	6"
39MXL-P-6A	Aluminum	.080 MXL	39	0.993	0.973	0.5000	6"
13MXL-P-2A	Aluminum	.080 MXL	13	0.331	0.311	0.3750	2"
14MXL-P-3A	Aluminum	.080 MXL	14	0.357	0.337	0.3750	3"
20MXL-P-4A	Aluminum	.080 MXL	20	0.509	0.489	0.3750	4"
21MXL-P-4A	Aluminum	.080 MXL	21	0.535	0.515	0.3750	4"
22MXL-P-4A	Aluminum	.080 MXL	22	0.560	0.540	0.3750	4"
23MXL-P-4A	Aluminum	.080 MXL	23	0.586	0.566	0.3750	4"
15MXL-P-3A	Aluminum	.080 MXL	15	0.382	0.362	0.4375	3"
16MXL-P-3A	Aluminum	.080 MXL	16	0.407	0.387	0.4375	3"
17MXL-P-3A	Aluminum	.080 MXL	17	0.433	0.413	0.4375	3"

.080" MXL Inch PitchTiming Pulley Stock

.080" MXL Pitch (Inch) Timing Pulley Stock - Full Product List

Download CAD / PDF
