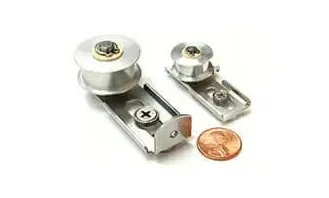

Static Slot Timing Belt Tensioners Size 4

Size 4

Static Slot

Active filters:

There are 14 products.

Part Number No. of Grooves Pulley Pitch Pulley O.D. Pulley Material Max. Belt Width Pulley Height Bearing Type Mounting Screw Spring Direction Max. Spring Force
N/A FLAT 1" PLASTIC 3/8" (9mm) .18" N/A 10-32 x 1/2 N/A N/A
N/A FLAT 1" ALUMINUM 3/8" (9mm) .18" BALL 10-32 x 1/2 N/A N/A
N/A FLAT 1" ALUMINUM 3/8" (9mm) .23" SLEEVE 10-32 x 1/2 N/A N/A
40 2mm GT .983" ALUMINUM 3/8" (9mm) 4.6mm BALL 10-32 x 1/2 N/A N/A
40 2mm GT .983" ALUMINUM 3/8" (9mm) 5.8mm SLEEVE 10-32 x 1/2 N/A N/A
28 3mm GT 1.023" ALUMINUM 3/8" (9mm) 4.6mm SLEEVE 10-32 x 1/2 N/A N/A
40 MXL (.080") .999" ALUMINUM 3/8" (9mm) .23" BALL 10-32 x 1/2 N/A N/A
40 MXL (.080") .999" ALUMINUM 3/8" (9mm) .18" SLEEVE 10-32 x 1/2 N/A N/A
28 3mm HTD 1.023" ALUMINUM 3/8" (9mm) .23" BALL 10-32 x 1/2 N/A N/A
28 3mm HTD 1.023" ALUMINUM 3/8" (9mm) 4.6mm SLEEVE 10-32 x 1/2 N/A N/A
17 5mm HTD 1.020" ALUMINUM 3/8" (9mm) 5.8mm BALL 10-32 x 1/2 N/A N/A
17 5mm HTD 1.020" ALUMINUM 3/8" (9mm) 4.6mm SLEEVE 10-32 x 1/2 N/A N/A
16 XL (1/5") .999" ALUMINUM 3/8" (9mm) .18" BALL 10-32 x 1/2 N/A N/A
16 XL (1/5") .999" ALUMINUM 3/8" (9mm) .23" SLEEVE 10-32 x 1/2 N/A N/A
