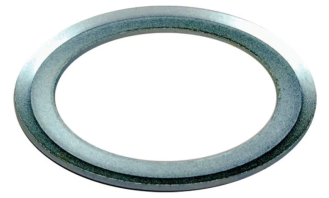

5mm GT2 Metric Pitch
Timing Pulley Flanges

5mm GT2 Pitch (Metric) Timing Pulley Flanges - Full Product List

There are 19 products.

Part Number	Material	Pitch	No. of Grooves	Outside dia. [mm]	Inside Dia. [mm]	Stock Thickness [mm]	Overall Formed Thickness [mm]
12-5GT-F9A	Aluminum	5mm GT2	12	22.2	12.78	1.02	1.65
13-5GT-F9A	Aluminum	5mm GT2	13	23.8	14.27	1.02	1.65
14-5GT-F9A	Aluminum	5mm GT2	14	25.4	14.27	1.02	1.65
15-5GT-F9A	Aluminum	5mm GT2	15	27	15.88	1.02	1.65
16-5GT-F9A	Aluminum	5mm GT2	16	27.8	17.37	1.02	1.65
17-5GT-F9A	Aluminum	5mm GT2	17	30.2	19	1.02	1.65
18-5GT-F9A	Aluminum	5mm GT2	18	31.8	20.58	1.02	1.65
19-5GT-F9A	Aluminum	5mm GT2	19	33.3	22.53	1.02	1.65
20-5GT-F9A	Aluminum	5mm GT2	20	34.9	23.77	1.02	1.65
21-5GT-F9A	Aluminum	5mm GT2	21	36.5	25.4	1.02	1.65
22-5GT-F9A	Aluminum	5mm GT2	22	38.1	26.97	1.02	1.65
23-5GT-F9A	Aluminum	5mm GT2	23	39.7	28.58	1.02	1.65
24-5GT-F9A	Aluminum	5mm GT2	24	41.3	29.46	1.02	1.65
25-5GT-F9A	Aluminum	5mm GT2	25	42.9	31.04	1.02	1.65
26-5GT-F9A	Aluminum	5mm GT2	26	44.5	31.04	1.02	1.65
28-5GT-F9A	Aluminum	5mm GT2	28	47.6	34.21	1.02	1.65
30-5GT-F9A	Aluminum	5mm GT2	30	50.8	36.2	1.02	1.65
32-5GT-F9A	Aluminum	5mm GT2	32	54	39.37	1.02	1.65
34-5GT-F9A	Aluminum	5mm GT2	34	57.2	42.55	1.02	1.65
